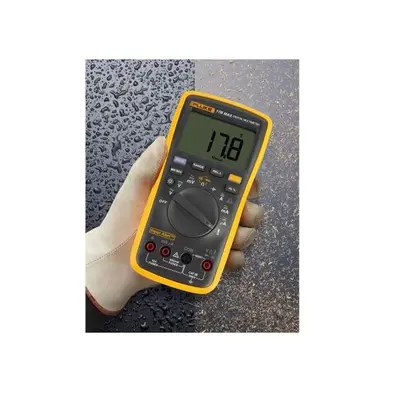

Fluke 17B MAX Digital Multimeter



The Fluke 17B Max Digital Multimeter is a high-quality handheld measuring instrument used for a wide range of electrical and electronic measurements. It is part of Fluke’s 170 Series of digital multimeters and is known for its durability, reliability, and accuracy.

Fluke Screenshot 2023 04 05 101927   Fluke Screenshot 2023 04 05 101657


  1. Measurement capabilities: The Fluke 17B Max can measure various electrical parameters such as voltage (AC and DC), current (AC and DC), resistance, capacitance, frequency, temperature, and continuity.

  2. True-RMS technology: The True-RMS (Root Mean Square) feature allows for accurate measurements of AC voltage and current, even for non-sinusoidal waveforms.

  3. Safety features: The Fluke 17B Max is designed with safety in mind and includes features such as overload protection, high energy fuse, and compliance with IEC61010-1:2001 safety standards.

  4. Backlit display: The multimeter has a large, clear, and easy-to-read display with a backlight, making it convenient to use in low-light conditions.

  5. Data logging: The Fluke 17B Max has a built-in data logging feature that allows you to capture and store measurement data for later analysis.

  6. Battery life: The multimeter is powered by standard AA batteries, which provide a long battery life, making it suitable for extended use in the field.

  7. Robust design: The Fluke 17B Max is built to withstand harsh working conditions, with a rugged housing that can withstand falls, moisture, and dust.

  8. Additional features: The Fluke 17B Max also includes other useful features such as a diode test, duty cycle measurement, and relative mode for zeroing out test lead resistance.

Fluke Screenshot 2023 04 05 101359

Package Includes:

1 x Fluke 17B Max Digital Multimeter

Weight 0.735 kg
AC Millivolts 600.0 mV
DC Volts 6 – 1000 V
DC Millivolts 600.0 mV
AC Current μA (40 Hz to 400 Hz) 400 – 4000  μA
AC Current mA (40 Hz to 400 Hz) 40 – 400 mA
AC Current A (40 Hz to 400 Hz) 4 – 10 A
DC Current μA 400 – 4000 μA
DC Current mA 40 – 400 mA
DC Current A 4 -10 A
Temperature 4 50.0 °C to 400.0 °C ,0 °C to 50.0 °C ,-55.0 °C to 0 °C
Diode Test 2
Resistance (Ohms) 400Ω – 40MΩ
Capacitance 40nF – 2000 μF
Frequency (10 Hz to 100 kHz) 50Hz – 100kHz
Shipping Weight 0.735 kg
Shipping Dimensions 22 × 16 × 6 cm
