Product Description

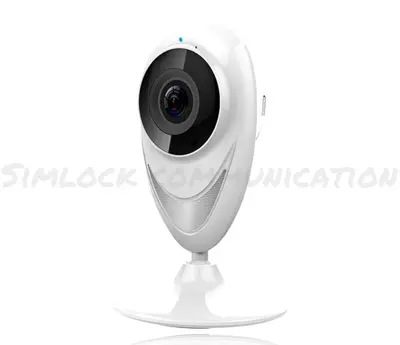

Full View 360 EYE  180 CLOUD CAMERA

• Product name: EC network panoramic camera


• Product model: 360 EYE


• Processor: GM8135+SC1145


• Platform: S.360eye.cc


• Image sensor: 1/4 Progressive Scan CMOS


• Built in lens: 1.44mm, 185 degrees fisheye lens


• View Angle: Horizontal 185 degrees ( overhead view / side view)


• Video format: 1280*720P (1MP)


• Audio compression standard G.711


• Video frame rate: Maximum 25 fps


• Video playback mode: Mobile APP


• Audio input and output: Input: built in microphone; output: built-in speaker


• IR night vision: Through the image contrast control switch, IR night vision distance 10 meters, (optional IR-CUT switch)


• Focusing method: Manual


• Local storage TF card, maximum support 128G


• Support multiple protocols: TCP/UDP、IP、HTTP、SMTP、DHCP、DDNS、UPNP、NTP、ONVIF、RTSP


• WiFi protocol: IEEE 802.11b/g/n


• Video control: Support


• Motion detection: Support


• Alarm action: Mobile APP push screenshot


• User settings: Max share to 2 users


• System interface: 1pc USB power supply interface、1 TF interface


• Supply voltage: 5V 1A


• Power consumption： <5W
